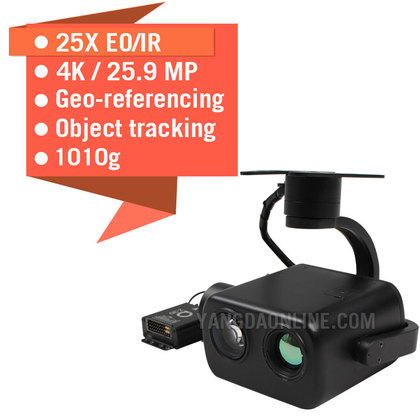

EAGLE EYE-25IE 4K EO/IR DUAL SENSOR ZOOM CAMERA WITH GEOREFERENCING AND OBJECT TRACKING

Eagle Eye-25IE is a 3-axis high-stabilized gimbal with 4K EO/IR zoom camera for drone inspection, surveillance, search and rescue applications. The EO sensor provides 25X optical zoom and 4K video streaming, which will enable you to capture every detail in the air. And the thermal camera allows you to detect targets in the night or low visibility conditions and provides you with priceless information when you are carrying out missions like inspecting or monitoring objects. High-performance 3-axis gimbal is developed based on FOC(field-oriented control) technology, which will give you crystal clear video footage.

Compact and lightweight
Eagle Eye-25IE weighs as little as 1010 grams to help you meet your payload weight allowance.

High-quality video sensor
The optical zoom camera of the EO/IR gimbal provides not only 25X zoom and 4K video streaming but also 25.9MP resolution photo, which is very useful for applications like power line inspection, solar panel inspection, etc. Furthermore, the resolution of the thermal camera is 640*480, 25HZ, 3X digital zoom.

Geo-referencing
GPS coordinates from a Pixhawk flight controller will lead to the gimbal, and you can read it from the photo EXIF file.

Auto object tracking
With onboard object tracking module, Eagle Eye-25IE can track static or moving target smoothly, keeping it in the center of the frame.

Easy for integration
Eagle Eye-25IE can not only be controlled via PWM signal, but also serial command. Also, gimbal status(like Yaw/Pitch angle, zoom position, etc.) can be obtained by sending serial command to the gimbal via its serial port, which is useful for precise gimbal control and system integration.

Clean and simple wiring
The 4K 25X IR-EO gimbal comes with one wiring hub for RC receiver and video output port, which makes installation pretty comfortable and clean.

Two SD card slots
1080P video streaming and 2MP photos from the visual and thermal camera will be saved in one SD card, while 4K video streaming and 25.9MP photo from the visual camera will be saved in the second card.

Gimbal quick-release mechanism

Features
Weight: 1010grams(cameras included)
1/2.3 inch CMOS sensor
25X optical zoom, and 1080P/60 HDMI output for video downlink
Thermal camera:640*480, 25HZ, 25mm lens, 3X digital zoom, radiometric(optional)
Geo-referencing
Auto object tracking function
PWM control and serial command control
Convenient wiring hub for RC receiver and video output
3-aixs high stabilized gimbal system
One key back to home position
