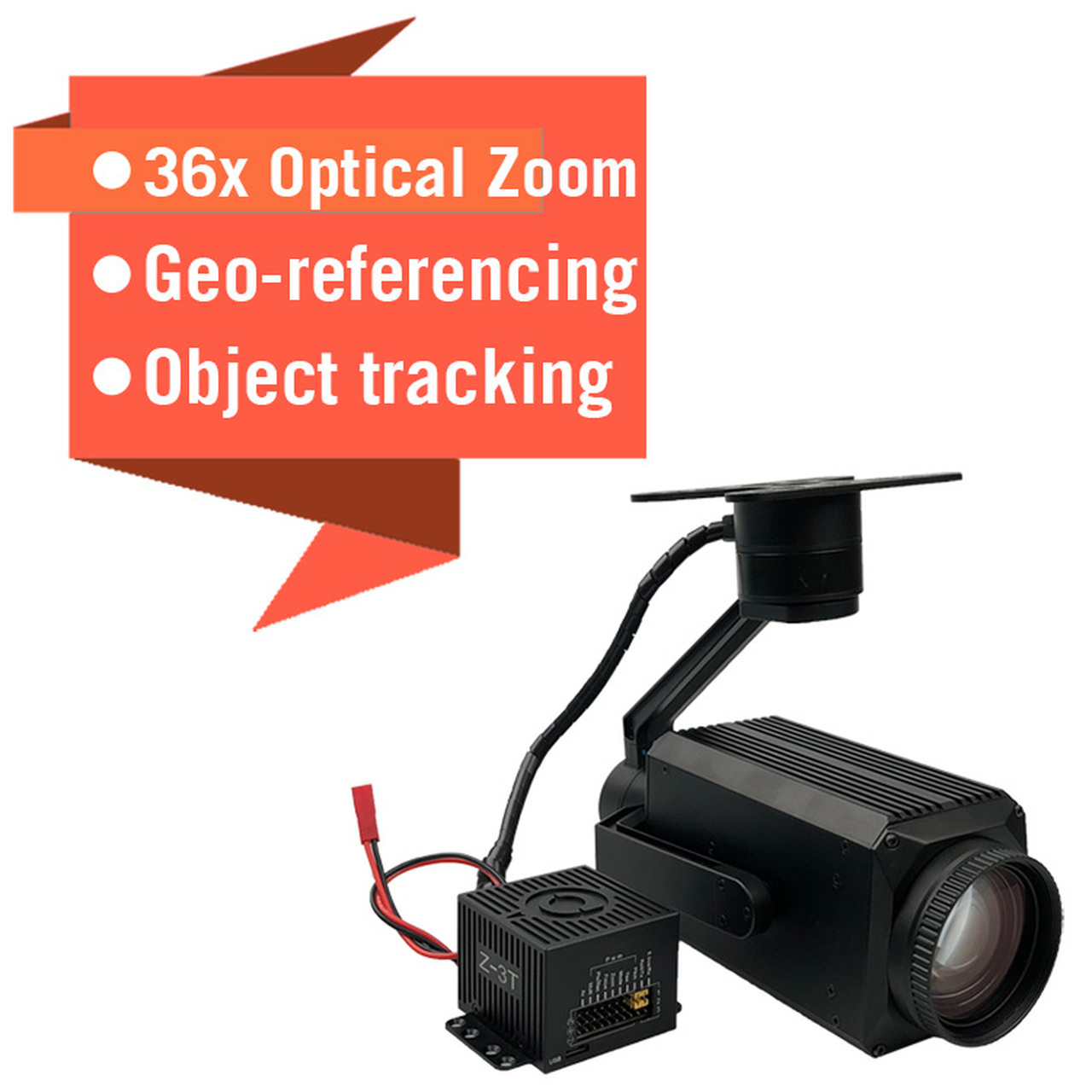

SKY EYE-36SZ 1080P 36X ZOOM CAMERA FOR DRONE WITH OBJECT TRACKING AND GEOTAGGING

Sky Eye-36SZ is a 3-axis high stabilized gimbal with 1080P 36X zoom camera for drone inspection,surveillance,search and rescue applications.The 36X zoom camera provides 1080P 30FPS full HD video streaming and up to 432X zoom capability,which will enable you to capture every detail in the air.High-performance 3-axis gimbal is using advanced FOC(field-oriented control) motor control technology which will enable you to get a 0.01 degree incredible precise control,so the gimbal will give you crystal clear and stable video footage.

Night vision capability
Sky Eye-36SZ camera sensor is very sensitive to IR light due to its super low illumination: 0.0005lux@F1.5(black/white), 0.005lux@F1.5(color),0lux(IR). Once the enviroment illumination is lower than 0lux,then the camera IR cut will be activated(also you can activate it manually via controller),which will enable you to observe objects clearly in the darkness.

Easy for integration
Sky Eye-36SZ comes with an amazing advantage that the gimbal can not only be controlled via PWM signal,but also serial command. Also gimbal data(like Yaw/Pitch/Roll angle,zoom status etc) can be obtained by sending serial command to the gimbal via its serial port, which is really useful for precise gimbal control and system integration.

Auto object tracking
With onboard object tracking module, Sky Eye-36SZ is able to track static or moving target easily, keeping it in the center of the frame.

Geo-referencing
GPS coordinates from a Pixhawk flight controller will be led to the gimbal and you can read it from photo EXIF file.

Clean and simple wiring
Sky Eye-36SZ provides an outstanding wiring hub design for RC receiver and video output port(AV and HDMI),which makes wiring pretty easily. Also the gimbal offers 2 smart speed modes:FAST speed and LOW speed.Fast speed mode is used for small zooming range,which makes the gimbal control sensitive and quick.LOW speed mode is used for large zoom range,will enable you to target the object more accurately.

Compact and lightweight
Sky Eye-36SZ weighs as little as 945g to help you meet your payload weight allowance.

Features
1) 945grams,light weight
2) 1/1.9 inch 2.38MP CMOS sensor
3) 36X optical zoom,12X digital zoom,1080P/30 HDMI output
4) 1080P/30 H.264 video recorded for on-board TF card
5) Auto object tracking
6) Geotagging
7) Super low illumination:0.0005lux@F1.5(black/white),0.005lux@F1.5(color),0lux(IR)
8) PWM control and serial command control
9) Convenient wiring hub for RC receiver and video output
10) 3-aixs high stabilized gimbal system
11) Adjustable control speed: SLOW speed for large zoom range,accurate.FAST speed for small zoom range,sensitive and quick.
