TF-NOVA LiDAR

With line pattern laser beam, Benewake introduces the industry’s first one-dimensional area detection solution. It features a compact design, multiple interfaces, a waterproof lens, and versatility for both indoor and outdoor use. Its extensive command set ensures seamless integration.

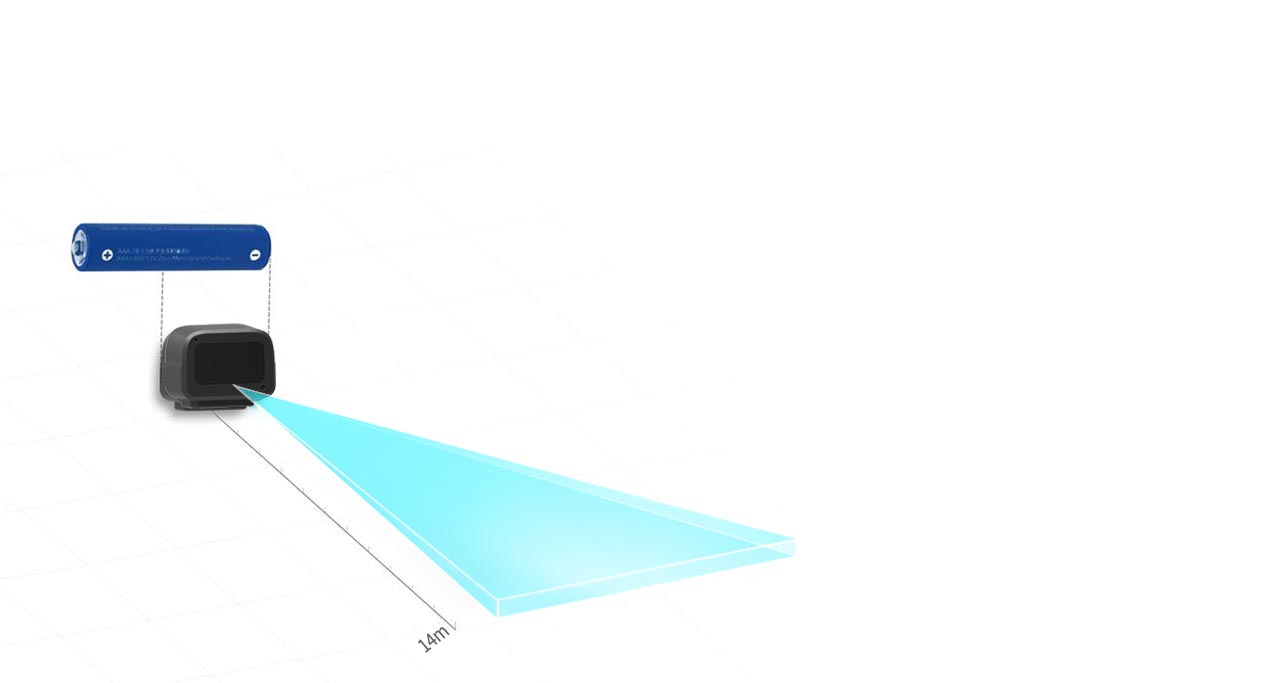

Line Pattern Laser Beam

TF-NOVA has a 14° × 1° FoV and can detect an area of 25 × 1.7 cm² at 1 m, similar to two laid flat chopsticks.

0.1 ~ 14 m

Range

14° (H) × 1° (V)

FoV

1 ~ 900 Hz

Frequncy

≤ 5 g

Weight

Notes：The light spot is vertical. Please contact Benewake for installation confirmation.

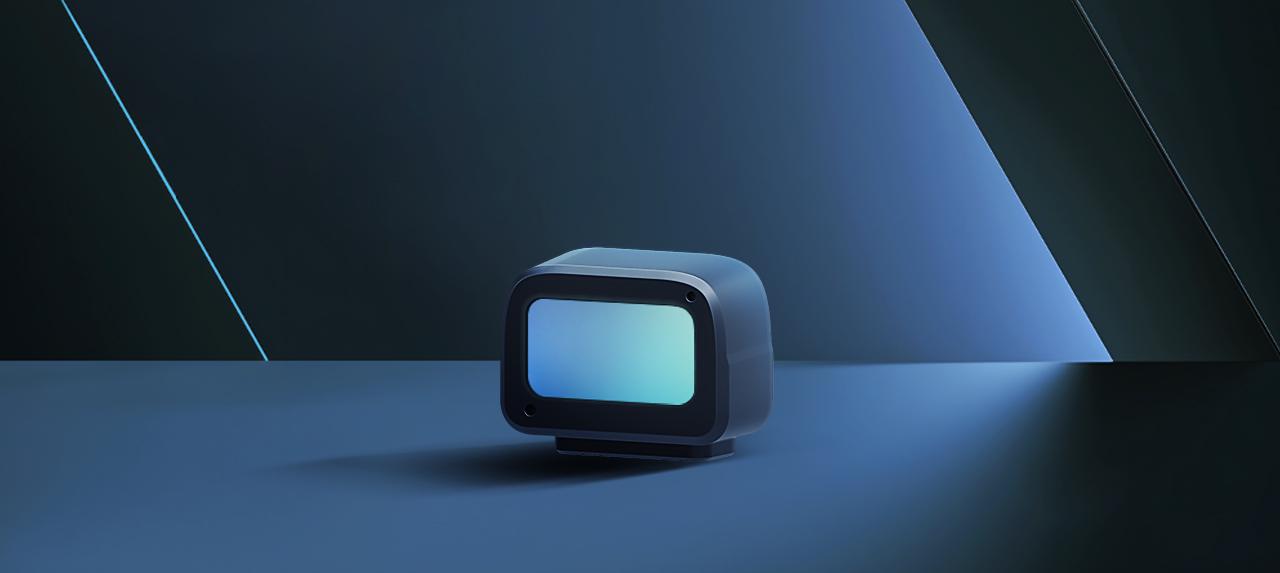

Compact Size

The size is 26.5 mm × 21.05 mm × 12 mm and about 7 cm³ in volume, it is smaller than a AA battery. It provides great convenience and flexibility for system integration.

26.5 mm × 21.05 mm × 12 mm

Size

± 5 cm @ 0.1 ~ 4 m

Accuracy

– 25 ℃ ~ + 70 ℃

Work Temperature

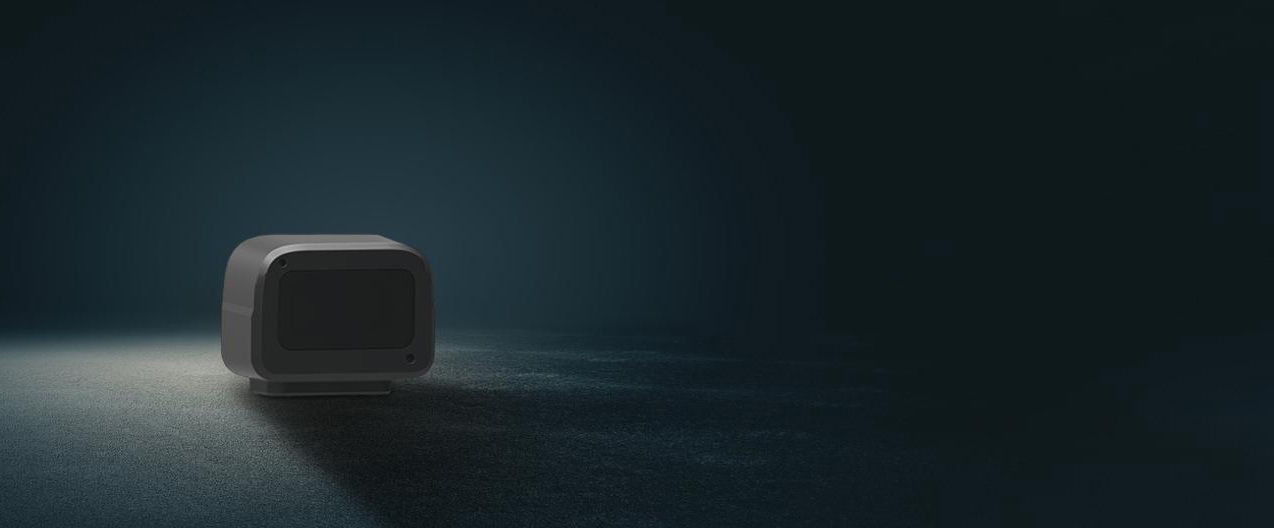

Outdoor and Indoor Stable Detection

TF-NOVA reliably detects a 5 cm target with 10% reflectivity at a range of 2 m in both bright sunlight and low light. In summer, black vehicles can be detected within 2 m.

Resistance

Multiple Interfaces

TF-NOVA supporting both standalone and networked operations. Additionally, it can be configured for I/O output mode, significantly reducing data processing workload. Also supports UART and IIC interfaces.

Industrial applications

Vehicle Door Obstacle Avoidance

The intelligent automatic car door continuously senses its surroundings, including pedestrians, other vehicles, and static obstacles. If a potential collision is detected, it can quickly respond by stopping the door from opening or adjusting its spee

Pallet Transport Robot Obstacle Avoidance

The Benewake LiDAR can monitor obstacles and distance information around the robot in real-time, allowing the system to promptly control deceleration or emergency stops, ensuring operational safety.
