TFS20-L
Miniaturized Single-Point LiDAR
Strong Resistance To
Ambient Light
Ambient Light
TFS20-L

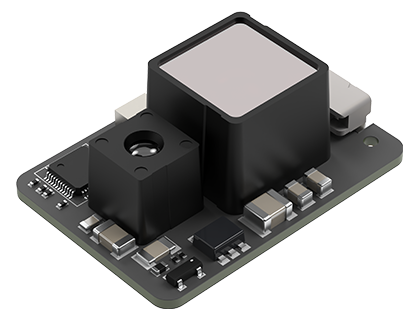

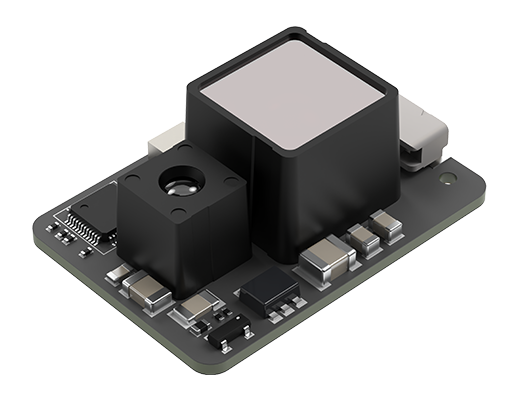

Miniaturized Single-Point LiDAR Module
The TFS20-L is a fully integrated single-channel dToF ranging mini-module that incorporates a highly sensitive infrared-enhanced SPAD sensor, with a range of up to 20 m. Utilizing a fully integrated SPAD chip solution, histogram statistical algorithm, and a fast TDC architecture, it achieves high-precision distance measurement while offering sunlight resistance of 15 m @ 100 KLux, along with a reflectivity correction feature.
01
Compact size
High performance
High performance
With a compact size, lightweight design, accurate and long-range measurement capabilities, and excellent distance measurement performance even under strong ambient light, it is an excellent choice for miniature dToF applications.
21 mm × 15 mm × 7.87 mm
Dimensions
1.35 g
Weight
± 6 cm
Accuracy
100 KLux
Anti-ambient light
02
Feature-rich
Diverse applications
Diverse applications
The TFS20-L integrated power module operates on a single 3.3 V power supply and features built-in temperature compensation. It supports I²C and UART interfaces, making it easy to integrate and use. With its compact and reliable optical packaging, it is suitable for a wide range of applications, including consumer drones, service robots, and the Internet of Things.
Industrial applications
Industrial applications
UAV
LiDAR Sensors for Drones or UAVs
Robot Fall Prevention & Obstacle Avoidance
Leveraging its outstanding technology and extensive project experience, Benewake provides comprehensive fall prevention and obstacle avoidance solutions for robots.
Smart Trigger
Benewake has extensive project experience in common IoT applications such as trash can overflow and lid opening triggers, smart door switch triggers, and personnel detection triggers for smart devices in public spaces.
UAV
LiDAR Sensors for Drones or UAVs
Robot Fall Prevention & Obstacle Avoidance
Leveraging its outstanding technology and extensive project experience, Benewake provides comprehensive fall prevention and obstacle avoidance solutions for robots.
Smart Trigger
Benewake has extensive project experience in common IoT applications such as trash can overflow and lid opening triggers, smart door switch triggers, and personnel detection triggers for smart devices in public spaces.
UAV
LiDAR Sensors for Drones or UAVs
Robot Fall Prevention & Obstacle Avoidance
Leveraging its outstanding technology and extensive project experience, Benewake provides comprehensive fall prevention and obstacle avoidance solutions for robots.
Smart Trigger
Benewake has extensive project experience in common IoT applications such as trash can overflow and lid opening triggers, smart door switch triggers, and personnel detection triggers for smart devices in public spaces.
