Ultra-High-Frequency Lightweight UAV LiDAR

The TFA300 series defaults to 1 ~ 1,000Hz and can be adjusted to 10,000 Hz under
ultra-high frequency working mode. It collects data at 10,000 times per second,
detecting objects at Mach 1 with real-time distance updates every 3.4 cm.
This allows for faster obstacle detection and quicker distance updates,
giving drones more time to react.

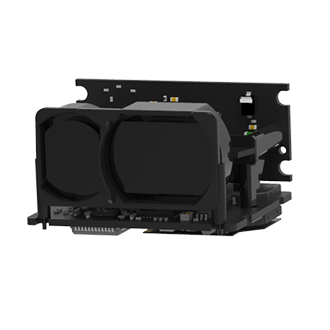

The TFA300-L weighs 10.5 g with a size comparable to dual stacked dice, while the
IP67-rated TFA300 housing adds protective durability at 34.5 g. The series’ compact
form factor enables direct integration into EO/IR gimbals, achieving SWaP-C
(Size, Weight, Power, and Cost) optimization.

TFA300 series uses industry-standard JST GH connectors for direct connection to
flight control platform without adapters, featuring a CAN interface for next-gen
flight control architectures. With an SDK supporting the DroneCAN protocol,
it offers plug-and-play compatibility with mainstream flight controllers,
significantly reducing development time and deployment costs.

TFA300 series is fully optimized for complex drone applications, including operation
under extreme temperatures, 100 KLux ambient light, and harsh outdoor conditions
such as rain, fog, and dust. It effectively resolves frequent false dection issues common in conventional LiDAR systems. To date, this technology has enabled delivery drone customers to achieve over 400,000 accident-free package deliveries globally.
