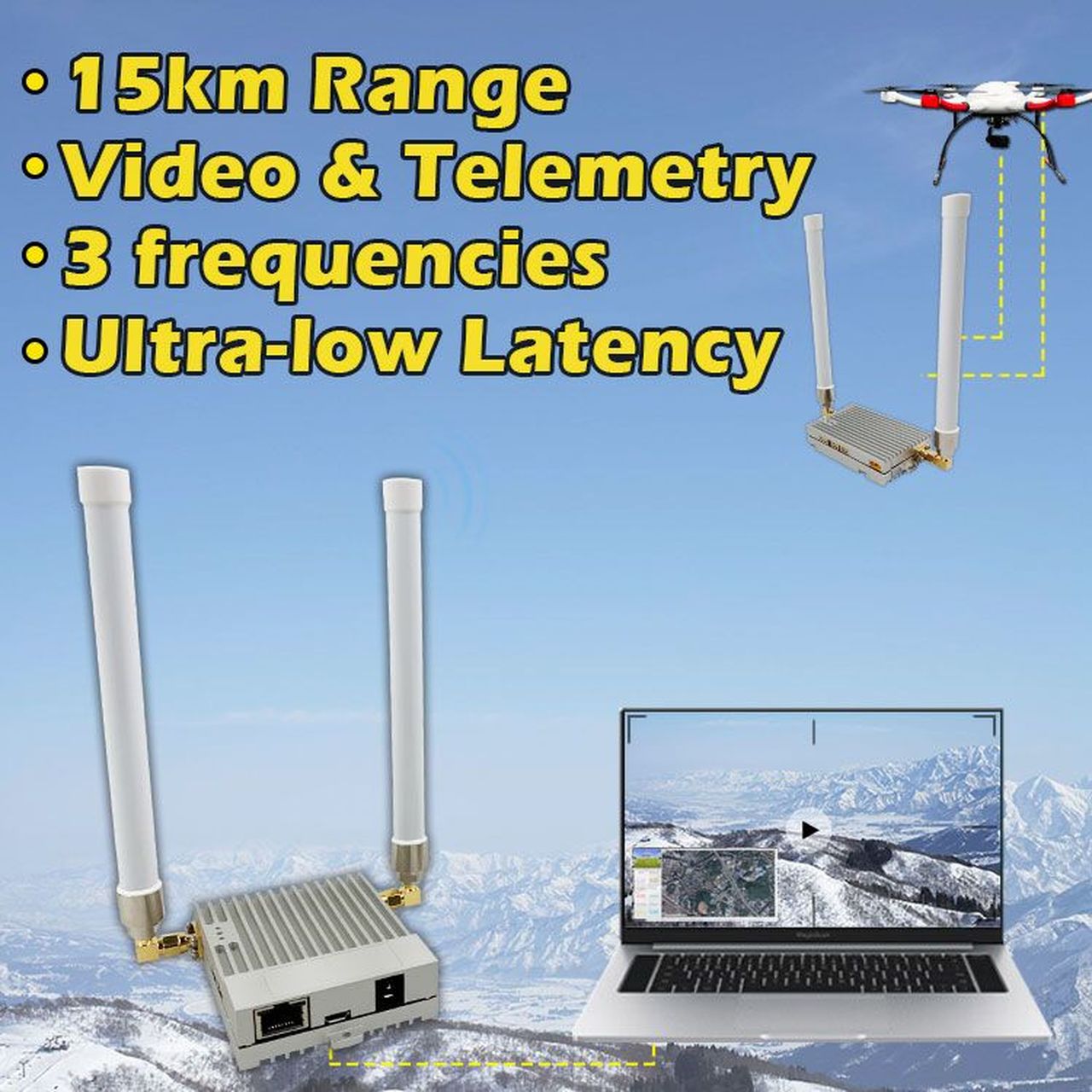

YANGDA VIDEOPASS-N15 LONG RANGE DIGITAL VIDEO AND DATA LINK
The YANGDA Videopass-N15 is a long-range, point-to-point, point-to-multipoint broadband video and data transmission module, and range can reach up to 15KM. Adopting key technologies such as OFDM(Orthogonal Frequency Division Multiplexing), MCS adaptive modulation and coding mechanism, the long-range digital video and data link is developed based on the LTE wireless communication standard and does not depend on the operator’s base station.
2 datalinks in one

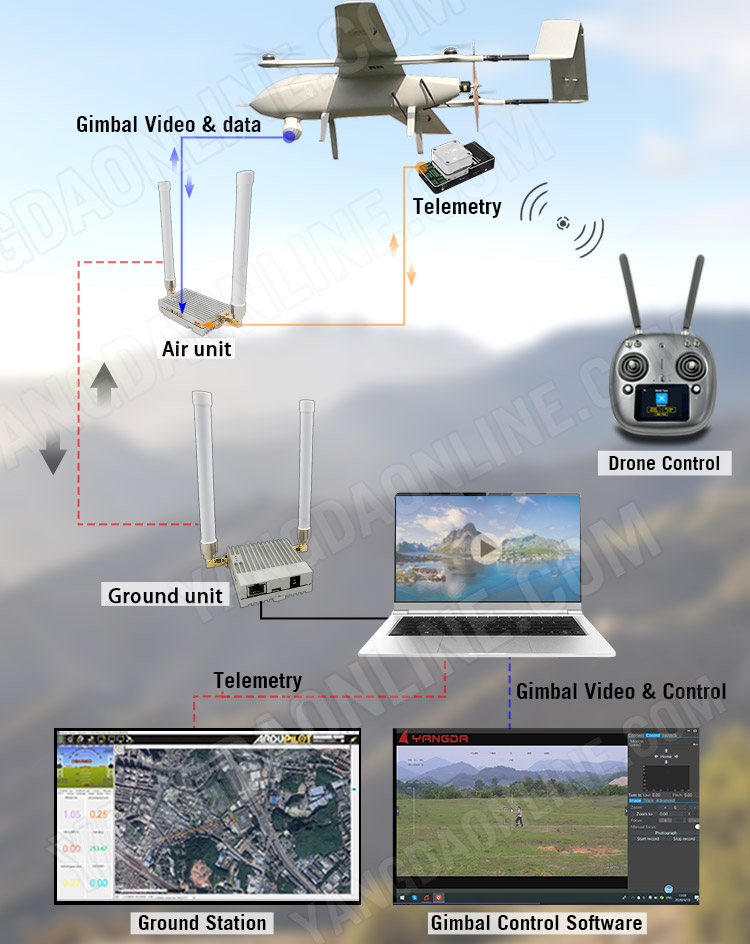

The Videopass-N15 has two Ethernet video channels and one telemetry channel.
3 frequencies
The video and data transmitter provides three frequencies to adapt to local regulation in different regions: 800MHz (806-826MHz), 1.4GHz (1427.9-1447.9MHz), and 2.4GHz (2401.5-2481.5MHz).

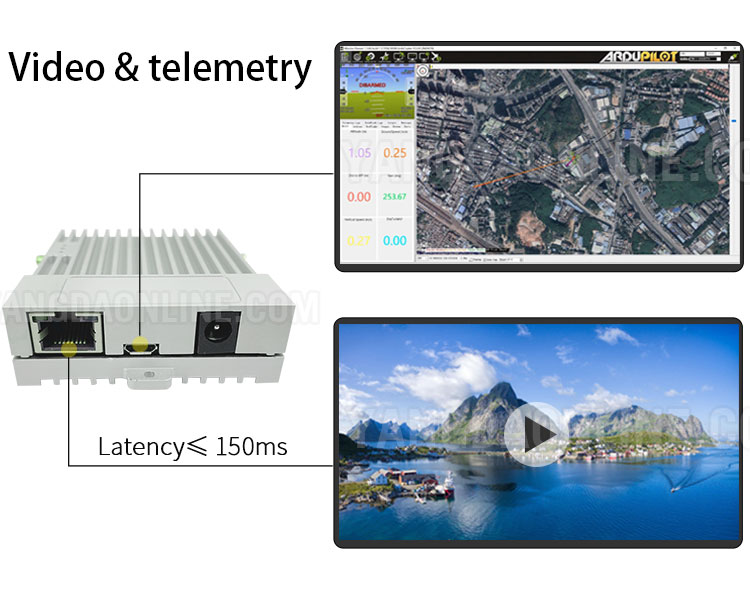

Ultra-low latency
Thanks to the flat system architecture, the latency of the video transmission is less than 150ms.
| Radio | |
| Frequency | 2401.5-2481.5MHz, 1427.9-1447.9MHz, 806-826MHz |
| Modulation | OFDM & MCS |
| RF power | up to 25dBm / 0.32W |
| Bandwidth | 1.4MHz / 3MHz / 5MHz /10MHz /20MHz (adjustable) |

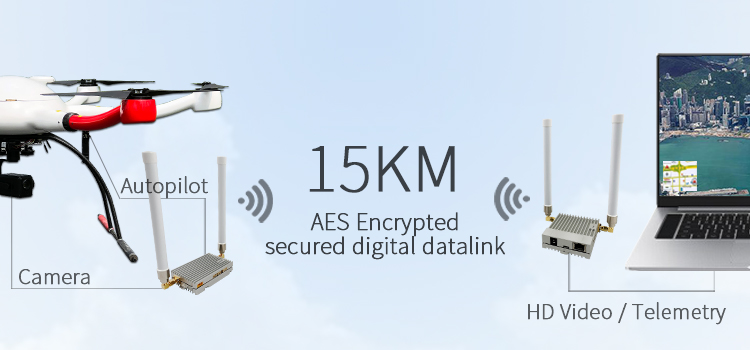

| Encryption | AES |
| Data rate | Max 30Mbps |
| Latency | Ethernet transmission ≤ 150ms, UART≤ 20ms |
| Range | 15km |
| Power | |
| Air unit | 2.7W, 5-36V DC |
| Ground unit | 3.1W, 5-36V DC |
| Size And Weight | |
| Size (air unit) | 85 x 52 x 18 mm |
| Size (ground unit) | 91 x 65 x 23 mm |

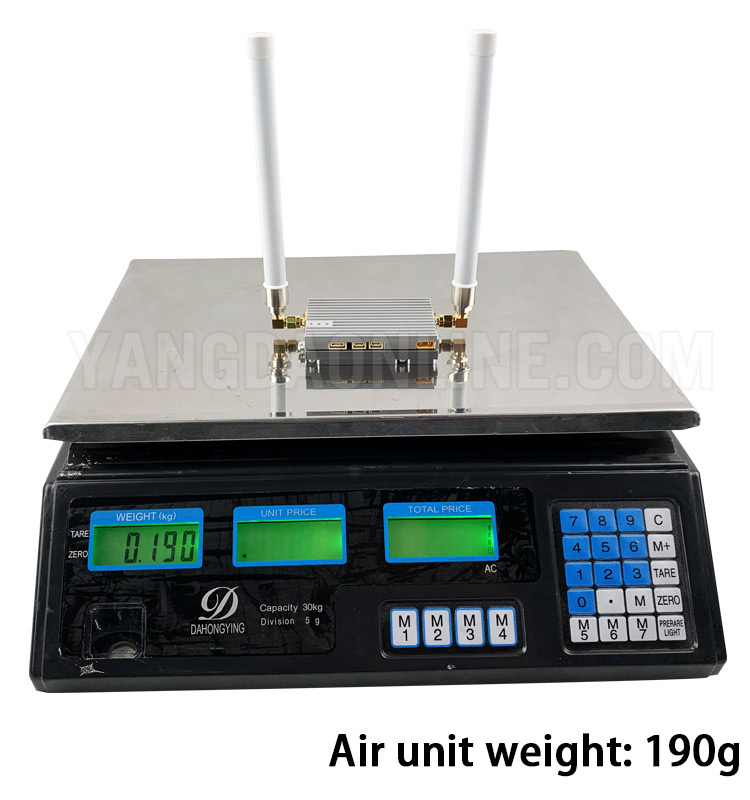

| Weight (air unit) | 190g (2 antennas are included) |
| Weight (ground unit) | 205g (2 antennas are included) |
| Connectivity | |
| Air unit | 2 x ETH, 1 x UART, 2 x SMA, 1 x Power Input |
| Ground unit | 1 x RJ45, 1 x USB2.0, 2 x ETH, 1 x Power Input |
| Antenna | |
| Air unit | 2 x SMA 2dBi |
| Ground unit | 2 x SMA 2dBi |
| Environment | |
| Storage temperature | -40℃~+85℃ |
| Working temperature | -20℃~+75℃ |
