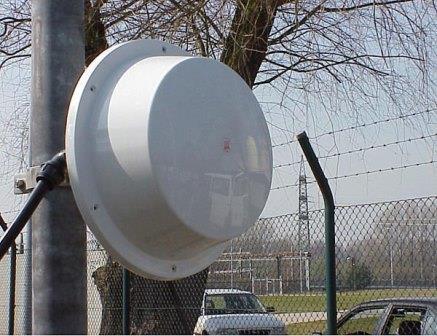

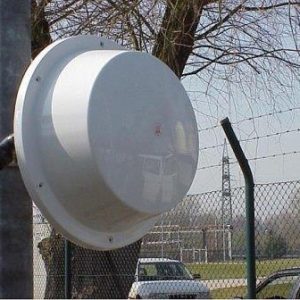

ERMO 482 microwave barrier

The ERMO482/50 model has a 100mm diameter parabolic antenna, which is able to create very wide detection fields over short range. the Ermo 482/80, 120, 200 use a 200mm parabolic antenna which creates narrower fields, more useful where the available space is restricted but the distances are longer. We specifically designed ERMO482 as a detector for external protection and it is therefore able to adjust for all types of weather conditions. It has sensitivity and integration controls for target discrimination. It has a system of 4 pre-settable modulation codes (channels) that prevents interference at crossover points.

ERMO482 uses new generation microwave components of very high stability thanks to technologies such as “strip line”, “gas fet”, “dro” together with parabolic antennas and a “backfire” illuminator. Everything is designed and produced in cias own laboratories.

ERMO 482 MICROWAVE BARRIER TECHNICAL FEATURES

Frequency = x-band certified in many countries and conforms to CE, USA and Canadian standards
Range = 50, 80,120, 200 m
Power supply = 19Vac, 13.8Vdc, 24Vdc
Consumption = TX 100 ma – RX 100 ma (a 13,8 vdc)
Temperature = -35°c/+65°c
Channels = 4
Dimensions/weight = max 310 mm, depht 260 mm
Alignment = Electronic using STC95
Outputs Relays = alarm, tamper, fault
Special applications = Explosion proof available

ACCESSORIES

STC-95 & STC light

Instrument for correct alignment and set up of all CIAS analogue barriers. During maintenance it can be used to monitor the most important values and to check the correct operation of each device. It has an integral buzzer which has a special function for determining the dimensions and shape of the detection field and for setting the correct sensitivity and integration for each installation.

PALINOX KIT+

Mounting poles and derivation boxes made in stainless steel

TR 30
The ERMO family can be supplied with 220vac mains supply (as well as 13.8Vdc, 24Vdc and 19Vac) by using the optional 30Va 220/19Vac transformer located in the junction box under the transmitter and receiver.
