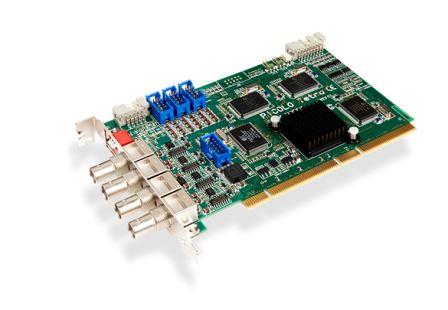

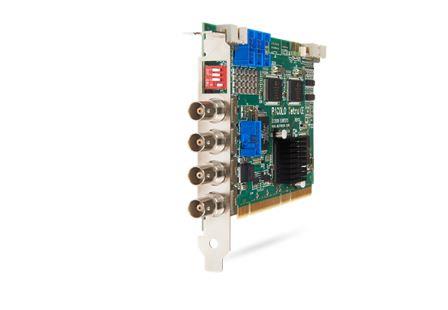

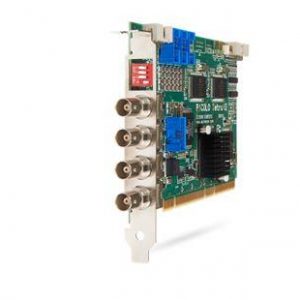

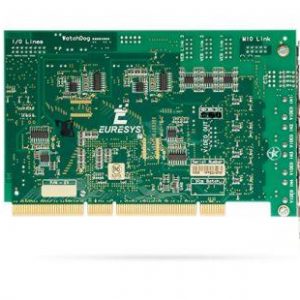

- 4x BNC connectors on the bracket, expandable to 16 with three [1203] VEB modules (sold separately)
- PCI 64-bit 66 MHz bus
- Four video decoders, 100/120 images per second (200/240 fields per second)
- Real-time acquisition from 4 cameras, fast switching between up to 16 cameras
Video input configurations
- Four cameras can be connected using the BNC connectors on the bracket: Acquisition at 30 (NTSC) or 25 (PAL) frames per second per camera
- Eight cameras can be connected using the BNC connectors on the bracket and one [1203] VEB: Acquisition at 6.7 (NTSC) or 5.6 (PAL) frames per second per camera
- Twelve cameras can be connected using the BNC connectors on the bracket and two [1203] VEBs: Acquisition at 4.6 (NTSC) or 3.8 (PAL) frames per second per camera
- Sixteen cameras can be connected using the BNC connectors on the bracket and three [1203] VEBs: Acquisition at 3.5 (NTSC) or 2.9 (PAL) frames per second per camera
| Mechanical | |
| Format | Standard profile, half-length, 64-bit Conventional PCI card |
| Dimensions | L 168 mm x H 107 mm |
| Host bus | |
| Standard | PCI 64-bit, 66 MHz, 3.3 V and 5 V signaling |
| DMA | 32-bit |
| Power consumption | Max. 8 W (1.3 A @ +5V, 120 mA @ +12V, 5 mA @ -12V) |
| Camera / video inputs | |
| Interface standard(s) | NTSC-M, PAL-B/G, RS-170, CCIR |
| Connectors |
|
| Termination resistor | Selectable using switches on the bracket |
| Native resolution | Square pixels, broadcast and custom resolutions |
| Frame rate |
|
| Number of cameras | 16 |
| Number of cameras (at full frame rate) | 4 |
| Video delivery | |
| Raw video format(s) | Planar, packed, YUV and RGB color formats |
| Deliverable video resolution (SD) | Frame, field, CIF, QCIF and custom image formats |
| General Purpose Inputs and Outputs | |
| Number of lines | 13 I/O lines (IO) |
| Connectors | DIGITAL I/O: 16-pin two-row 0.1″ shrouded header on the PCB |
| Usage | General purpose IO |
| Electrical specifications | IO: TTL-compatible I/O lines |
| Watchdog | Yes |
| Software | |
| Host PC Operating System |
Refer to release notes for details |
| APIs |
|
| Environmental conditions | |
| Operating ambient air temperature | 0 to +50 °C / +32 to +122 °F |
| Operating ambient air humidity | 10 to 90% RH non-condensing |
| Storage ambient air temperature | -20 to +70 °C / -4 to +158 °F |
| Storage ambient air humidity | 10 to 90% RH non-condensing |
| Certifications | |
| Electromagnetic – EMC standards |
|
| EMC – Emission |
|
| EMC – Immunity |
|
| Flammability | PCB compliant with UL 94 V-0 |
| RoHS | European Union Directive 2011/65/EU (ROHS2) |
| REACH | European Union Regulation 1907/2006 |
| WEEE | Must be disposed of separately from normal household waste and must be recycled according to local regulations |
